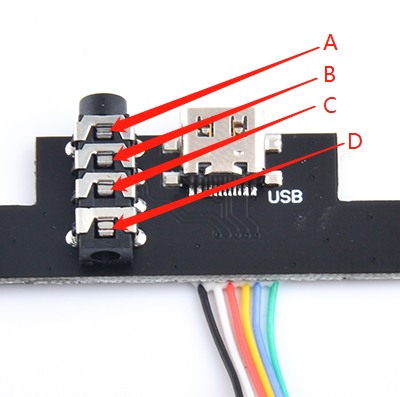

A. GND
B. Insert Detection
C. PPM
D. Null (not used)

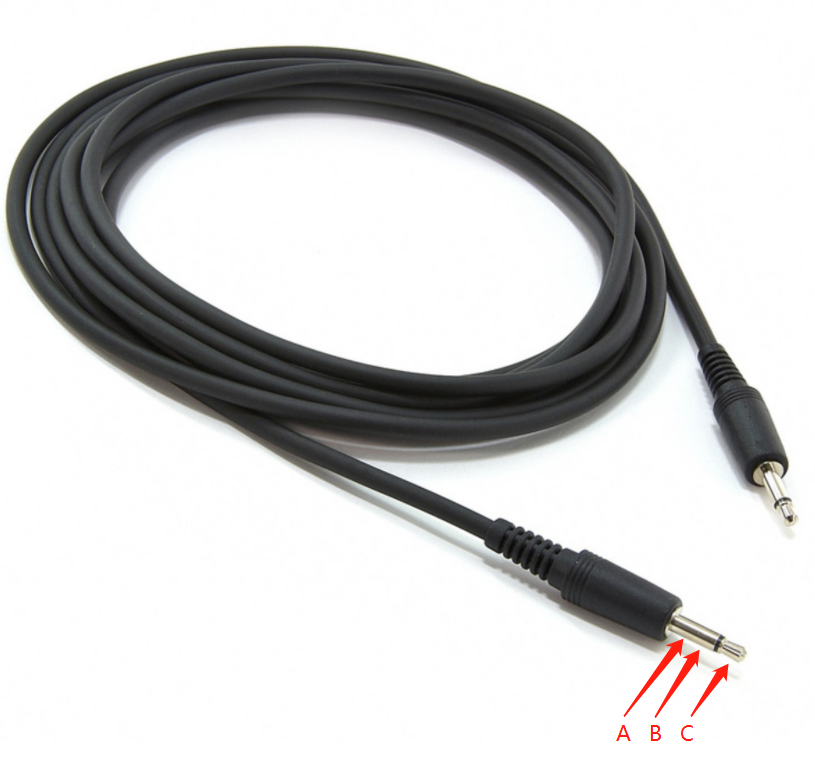

We suggest using a MONO 3.5mm plug for best results (JR/Spectrum style Trainer Cable).
Trainer Port Pin Out Print
